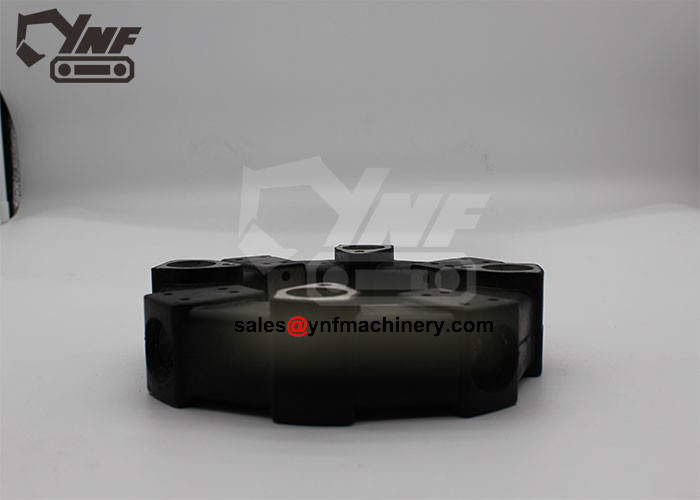

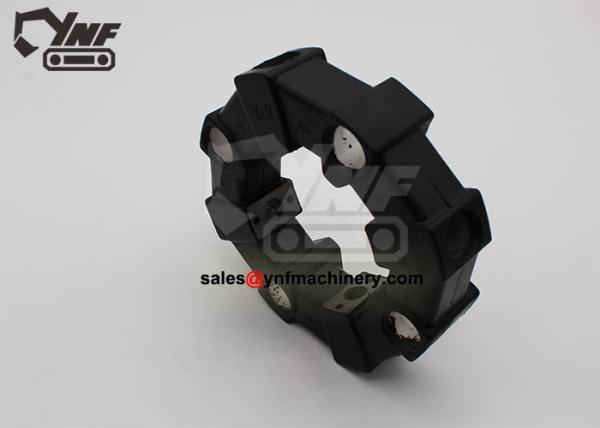

Excavator Coupler Parts Coupling Flexible Natural Rubber Parts Fit John Deere 27C
Description :
| Means of Transport | Ocean,Land,Air |
| Specifiion | Standard |
| Size | Can be customized |
| After-sales Service | Online Support |
| Coupling Structure | Helical Coupling |
| Packing | Standard package or as request |
| Color | Black |
| Appliion | Excavator |
| Local Service Loion | None |
Products Show
Packaging & Delivery
| Packaging Details: | Plastic bag, Carton |
| Delivery Detail: | Within 3 workingdays after payment |
More Parts Information:
Pos. Part No Qty Parts name Comments
0. 4487108 [1] Hydraulic Pump (COMPONENTS ON ANOTHER PAGE)
1. 19M7662 [5] Cap Screw M10 X 30
1. 12M7066 [1] Lock Washer 10 MM
2. J041045 [1] Bolt
3. 14M7274 [2] Nut M10
4. 12M7066 [2] Lock Washer 10 MM
5. 2047791 [1] Cover
6. 4439571 [1] Splined Coupling
8. 4245228 [1] Seal
9. A882030 [1] Plug
13. 19M8011 [2] Cap Screw M12 X 30
13. 12M7058 [2] Lock Washer 12 MM
15. 9750291 [1] Line (SUB FOR 9752265)
16. 19M8440 [4] Screw M10 X 25
Coupling Information:
1. It has high elasticity (low stiffness, high flexibility), the rotation angle is 10 degrees when bearing the nominal torque, and 25 degrees when the maximum torque is applied, which can reduce the natural vibration frequency of the shaft system and change the torsional vibration characteristics of the shaft system of the diesel engine power plant. , so that the diesel engine does not appear dangerous resonance speed within the required speed range. It can absorb and reduce the fluctuation of the output torque of the diesel engine. For the diesel engine power unit equipped with a reduction gear box, it can reduce the knock on the gear surface when the torque is fluctuating and prolong the service life of the gear.
2. It has good damping and vibration reduction characteristics, which can absorb part of the vibration energy, reduce the vibration amplitude when passing through the vibration point, and reduce the torsional vibration stress of the shaft section.
3. It can absorb and reduce the fluctuation of the output torque of the diesel engine. For the diesel engine power unit equipped with a reduction gear box, it can reduce the knock on the gear surface when the torque is changed, and prolong the service life of the gear.
4. It can compensate for axis deviation. It is not only highly elastic in torsion, but also elastic in axial, radial and angular directions. It is easier to center during installation and can compensate for errors caused by deformation of the hull and machine base after installation. , to ensure the normal operation of the diesel engine and shafting.
5. It can realize vibration reduction and isolation of solid sound and insulation current of the base. After the diesel engine is installed with a vibration damping base, relative vibration occurs between it and the shaft system. Only when an elastic ring coupling that is elastic in the axial, radial and angular directions is installed, the damper can be installed under the main engine. Vibrating the base, at the same time, it can isolate solid sound and reduce noise. Since the elastic ring coupling adopts natural rubber components, it has good insulation performance and can prevent axial current.
