290D Excavator Coupling China High Quality Hydraulic Pump Parts Coupling
Description :
| Means of Transport | Ocean,Land,Air |
| Specifiion | Standard |
| Advantage | Factory Price |
| After-sales Service | Online Support |
| Trademark | YNF/Y&F |
| Product Name | FLEX Couplings |
| Stock Situation | Always In Stock |
| Applicable Industries | Machinery Repair Shops, Construction Works |
| Local Service Loion | None |

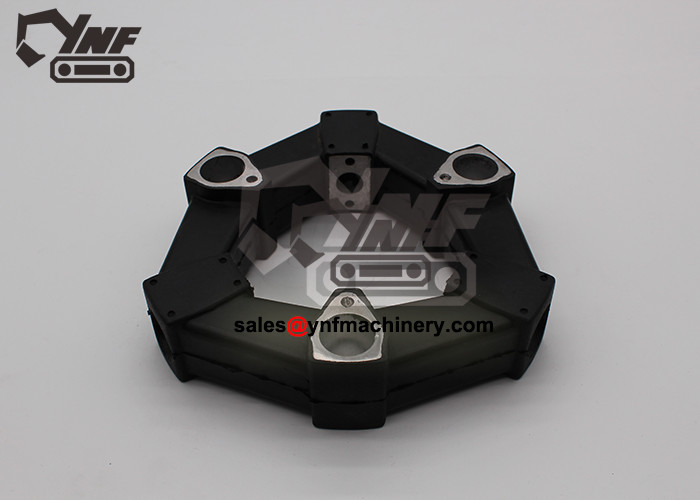

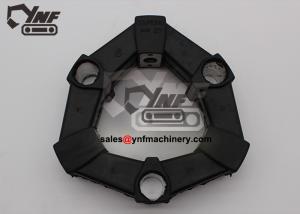

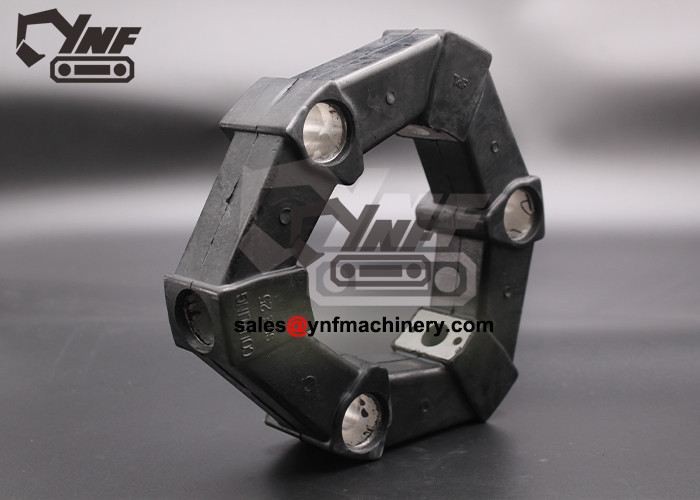

Products Show
Packaging & Delivery
| Packaging Details: | Plastic bag, Carton |
| Delivery Detail: | Within 3 workingdays after payment |
More Parts Information:
- 3038723 [1] Sleeve (SUB FOR TH108254)
- 30M7026 [1] Plug 50 MM (SUB FOR TH100682)
- 4063616 [1] Seal (SUB FOR TH100683)
- 4228189 [1] Coupling (SUB FOR TH100684 ) (SUB FOR AT122329)
- T108085 [8] Cap Screw M16 X 50
- T22874 [5] Bolt 9.525 X 28.448 MM
- 19H3239 [3] Cap Screw 3/8" X 1-1/4"
- 12H304 [12] Lock Washer 3/8"
- 4205128 [1] Cover (SUB FOR TH108255)
- 19H1648 [4] Cap Screw 3/8" X 3/4"
Coupling Information:
1. It has high elasticity (low stiffness, high flexibility), the rotation angle is 10 degrees when bearing the nominal torque, and 25 degrees when the maximum torque is applied, which can reduce the natural vibration frequency of the shaft system and change the torsional vibration characteristics of the shaft system of the diesel engine power plant. , so that the diesel engine does not appear dangerous resonance speed within the required speed range. It can absorb and reduce the fluctuation of the output torque of the diesel engine. For the diesel engine power unit equipped with a reduction gear box, it can reduce the knock on the gear surface when the torque is fluctuating and prolong the service life of the gear.
2. It has good damping and vibration reduction characteristics, which can absorb part of the vibration energy, reduce the vibration amplitude when passing through the vibration point, and reduce the torsional vibration stress of the shaft section.
3. It can absorb and reduce the fluctuation of the output torque of the diesel engine. For the diesel engine power unit equipped with a reduction gear box, it can reduce the knock on the gear surface when the torque is changed, and prolong the service life of the gear.
4. It can compensate for axis deviation. It is not only highly elastic in torsion, but also elastic in axial, radial and angular directions. It is easier to center during installation and can compensate for errors caused by deformation of the hull and machine base after installation. , to ensure the normal operation of the diesel engine and shafting.
5. It can realize vibration reduction and isolation of solid sound and insulation current of the base. After the diesel engine is installed with a vibration damping base, relative vibration occurs between it and the shaft system. Only when an elastic ring coupling that is elastic in the axial, radial and angular directions is installed, the damper can be installed under the main engine. Vibrating the base, at the same time, it can isolate solid sound and reduce noise. Since the elastic ring coupling adopts natural rubber components, it has good insulation performance and can prevent axial current.
Guangzhou XIEBAGN MACHINERY CO., LIMTED
specialized in:
couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.
And, Our company also supply:
Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.
We always try our best for all our customers and make it better and better. Welcome!
